Ultrasonic Module
Product Details
HC65F30GM-2N/2P-6000-V2
内置温度补偿
检测范围可调
铜镀镍外壳（可定制不锈钢）
防护等级 IP67
防反接、瞬时过压保护
500-6000mm
Measuring Range
0~500mm
Blind Zone
10~30VDC
Operating Voltage
-20℃~+70℃
Operating Temperature
Specifications
Parameters below support engineering selection and installation evaluation.
| Measuring Range | 500-6000mm |
|---|---|
| Blind Zone | 0~500mm |
| Standard Target | 300*300mm |
| Angle | 30° |
| Repeatability | 0.001 |
| Operating Voltage | 10~30VDC |
| Temperature Drift | 0.05%/°C(内置温度补偿） |
| Linearity | <1% |
| Resolution | 量程的0.1%(0.5mm min) |
| Response Time | 195ms |
| EMC | GB/T17626.2-2006 / GB/T17626.4-2008 |
| Power Consumption | <20ma |
| Protection Circuit | 防反接保护、瞬时过压保护 |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Housing Material | 铜镀镍(可定制不锈钢外壳) |
| Cable Length | 2m |
Values are based on standard test conditions. Confirm final performance for your application.

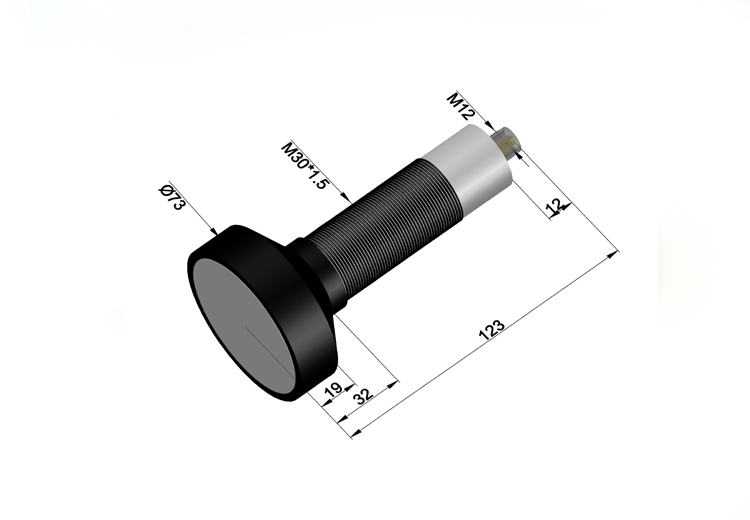

Dimensional Drawing

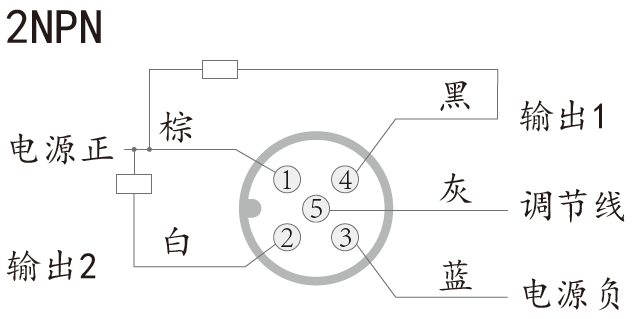

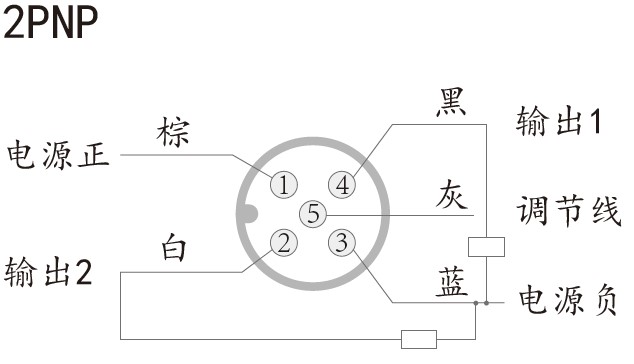

Wiring Diagram
