HC200E12TR-2
View key specifications, dimensions and downloads for this model.
High-Precision
Product Details

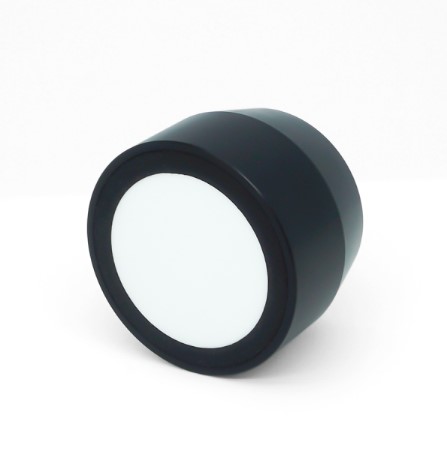

HC75E40TR-1
内置温度补偿1
检测范围可调
铜镀镍外壳可定制不锈钢外壳
防护等级 IP67
防反接保护、瞬时过压保护
-20°C~+80°C
Operating Temperature
75.0KHz±2%
Center Frequency
1950Pf±20%
Static Capacitance
1.2ms max
Ringing
Specifications
Parameters below support engineering selection and installation evaluation.
| Center Frequency | 75.0KHz±2% |
|---|---|
| Static Capacitance | 1950Pf±20% |
| Ringing | 1.2ms max |
| Beam Angle | 20°±5° (-6dB) |
| Peak Voltage | 1000Vp-p (脉冲) |
| Angle | 20±5° |
| Resolution | 1mm |
| Operating Temperature | -20°C~+80°C |
| Storage Temperature | -40°C~+80°C |
| Housing Material | 塑壳 |
Values are based on standard test conditions. Confirm final performance for your application.

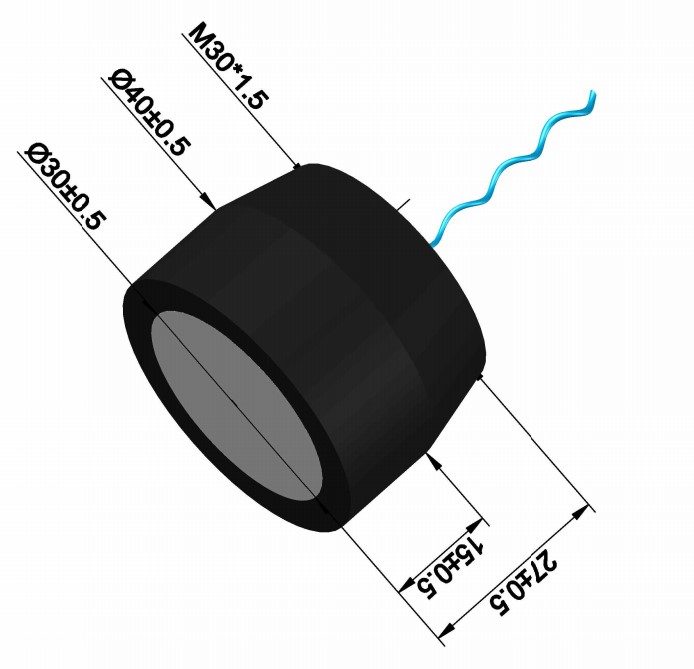

Dimensional Drawing
Wiring Diagram
