HC200E12TR-2
View key specifications, dimensions and downloads for this model.
High-Precision
Product Details
HC200E28TR-1D
内置温度补偿1
检测范围可调
铜镀镍外壳可定制不锈钢外壳
防护等级 IP67
防反接保护、瞬时过压保护
-20°C~+80°C
Operating Temperature
200.0KHz±4%
Center Frequency
400Pf±20%
Static Capacitance
700us max
Ringing
Specifications
Parameters below support engineering selection and installation evaluation.
| Center Frequency | 200.0KHz±4% |
|---|---|
| Static Capacitance | 400Pf±20% |
| Ringing | 700us max |
| Beam Angle | 10°±5° (-6dB) |
| Peak Voltage | 300Vp-p (脉冲) |
| Angle | 55*120° |
| Resolution | 1mm |
| Operating Temperature | -20°C~+80°C |
| Storage Temperature | -40°C~+80°C |
| Housing Material | 塑壳 |
Values are based on standard test conditions. Confirm final performance for your application.

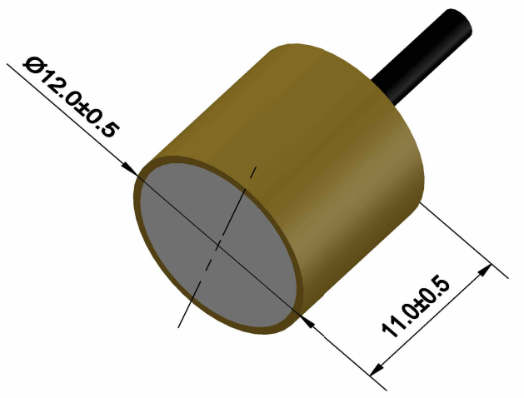

Dimensional Drawing
Wiring Diagram
