HC40B18TR-1
View key specifications, dimensions and downloads for this model.
Ingress Protected
Product Details
HC40A14T/R-1
环保材料
灵敏度高
可靠性强
-20°C~+80°C
Operating Temperature
40.0KHz±2%
Center Frequency
100dB min(40Khz 30cm 0dB=20ubar)
Transmit Sensitivity
-82dB min(40Khz 30cm 0dB=10V/pa)
Receive Sensitivity
Specifications
Parameters below support engineering selection and installation evaluation.
| Center Frequency | 40.0KHz±2% |
|---|---|
| Transmit Sensitivity | 100dB min(40Khz 30cm 0dB=20ubar) |
| Receive Sensitivity | -82dB min(40Khz 30cm 0dB=10V/pa) |
| Static Capacitance | 1900Pf±20% |
| Ringing | 1.2ms max |
| Beam Angle | 75°±15° (-6dB) |
| Peak Voltage | 120Vp-p (脉冲) |
| Angle | 75°±15° |
| Operating Temperature | -20°C~+80°C |
| Storage Temperature | -40°C~+80°C |
| Housing Material | 铝壳 |
Values are based on standard test conditions. Confirm final performance for your application.

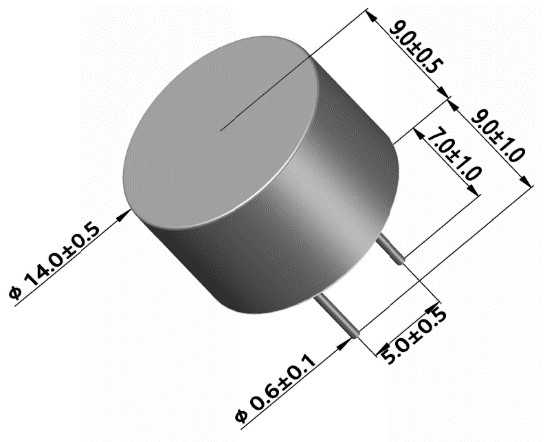

Dimensional Drawing
Wiring Diagram
